Starter wall from $277 — 21" starter rail + 2 panels, holds up to 8 rifles. Add 10" panels at $119 each.
Ships ground, priced by zone at checkout: $29–$59 for walls up to 7 panels. SpartanGrid ships separately and is not part of the $59 free-shipping offer.
What do I need for my wall?
The SpartanGrid System
The Spartan Mounts you love, on a panel system that...just works.
The SpartanGrid is a heavy-duty wall panel system designed around the Spartan Mounts you already own.
Built for gun walls, tactical gear walls, and fully reconfigurable storage SpartanGrid is a modular gun wall that grows and changes with your collection.
How It Works
Design. Build. Rearrange.

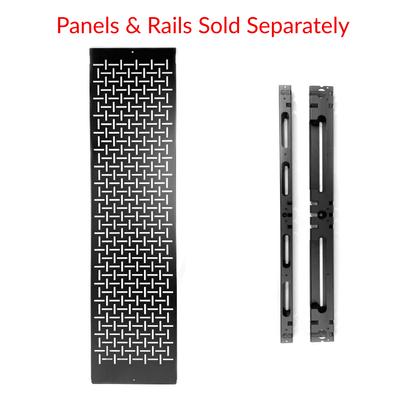

- Top and bottom rails mount directly to your wall

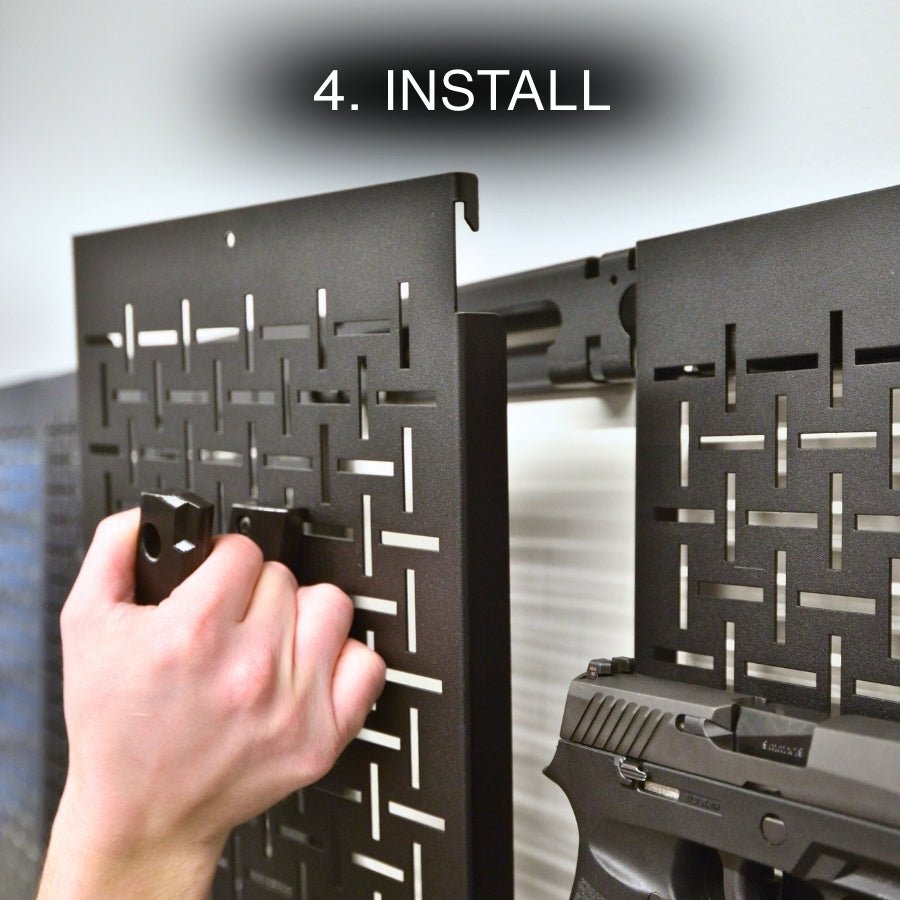

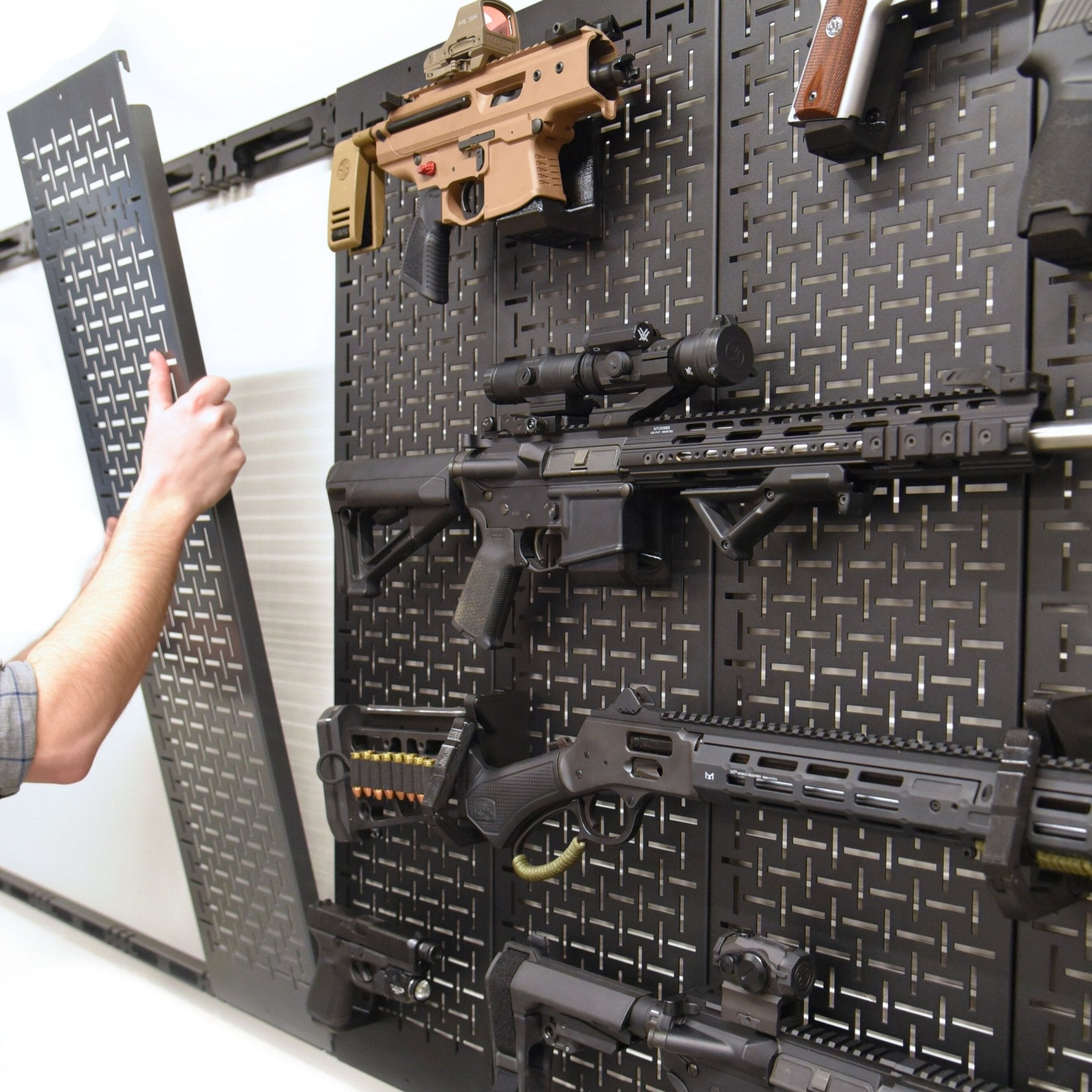

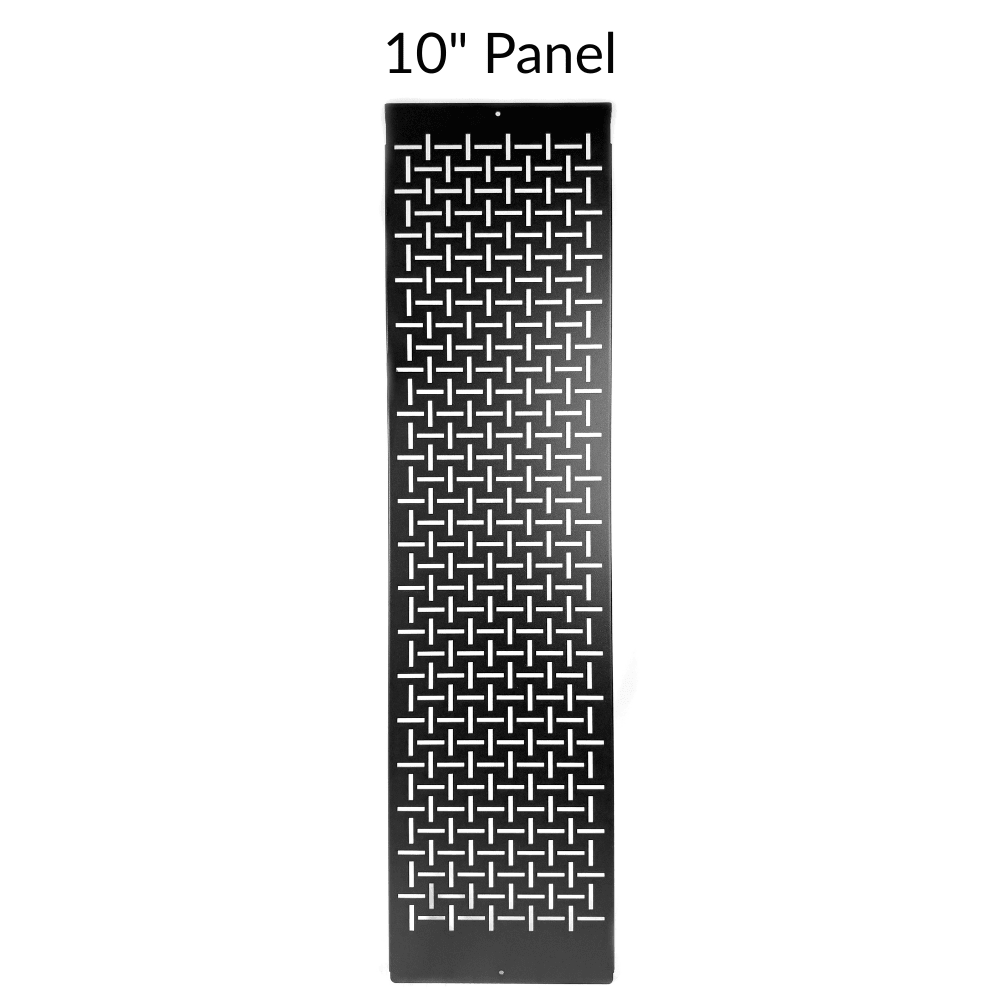

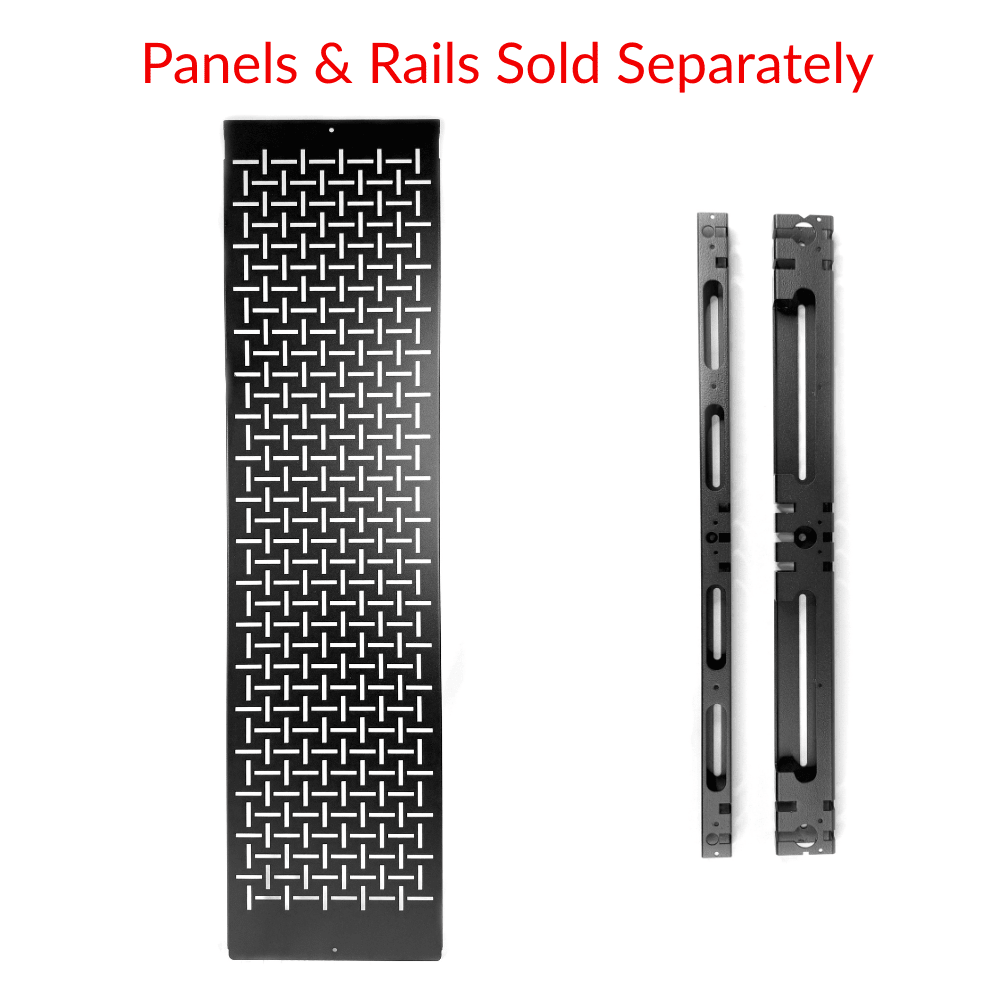

- 10" x 40" steel panels slot into the rails
- Flexible expansion from 21" to infinity!
The modular SpartanGrid system is ideal for gun rooms, safes, workshops, and tactical storage spaces where flexibility matters.
What To Expect

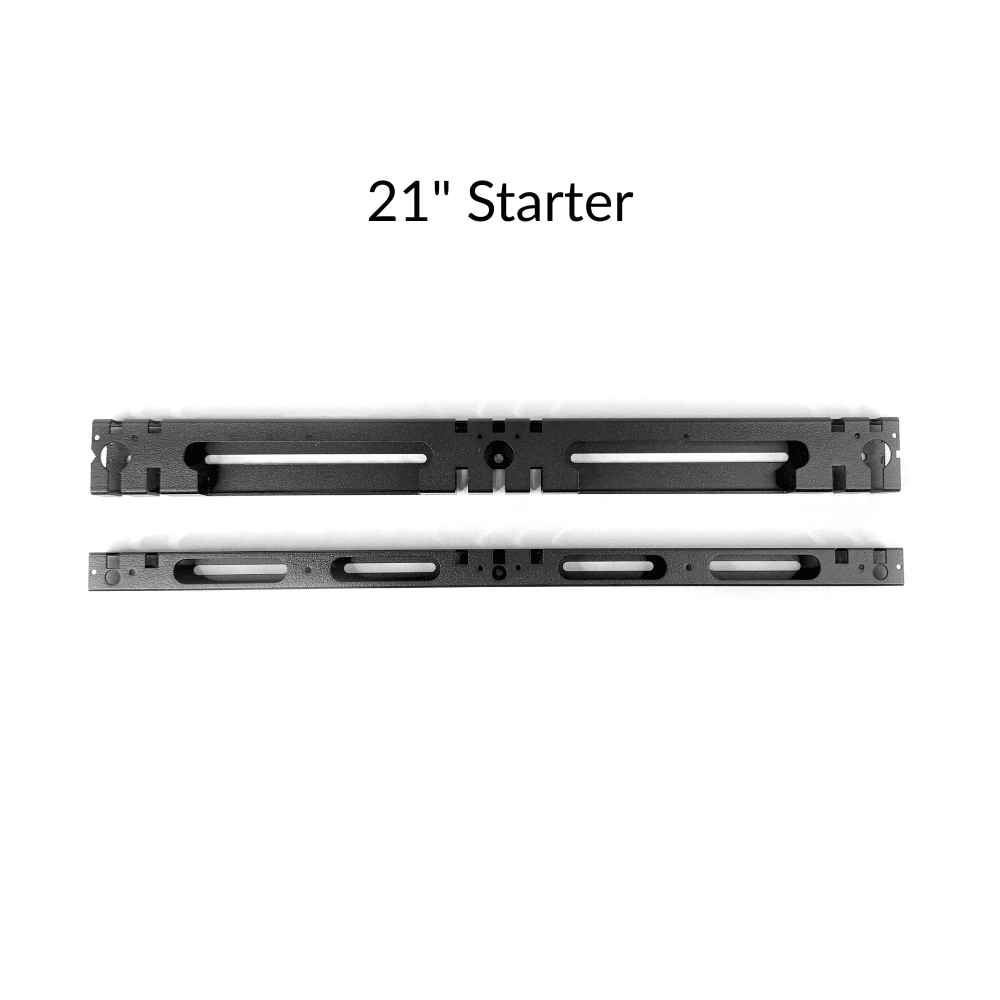

- Every wall requires [1] Starter Rail before adding extension rails.
-
All panels are 10" wide and are rated for 100 lb each.
- 2 panels fit on 21” rails
- 3 panels fit on 30/31” rails
- 4 panels fit on 40/41” rails, etc.
- All rails are black
- Install time:
- SpartanGrid: 15 minutes per 40" section
- Mounts:3 minutes each
Why Buy SpartanGrid?

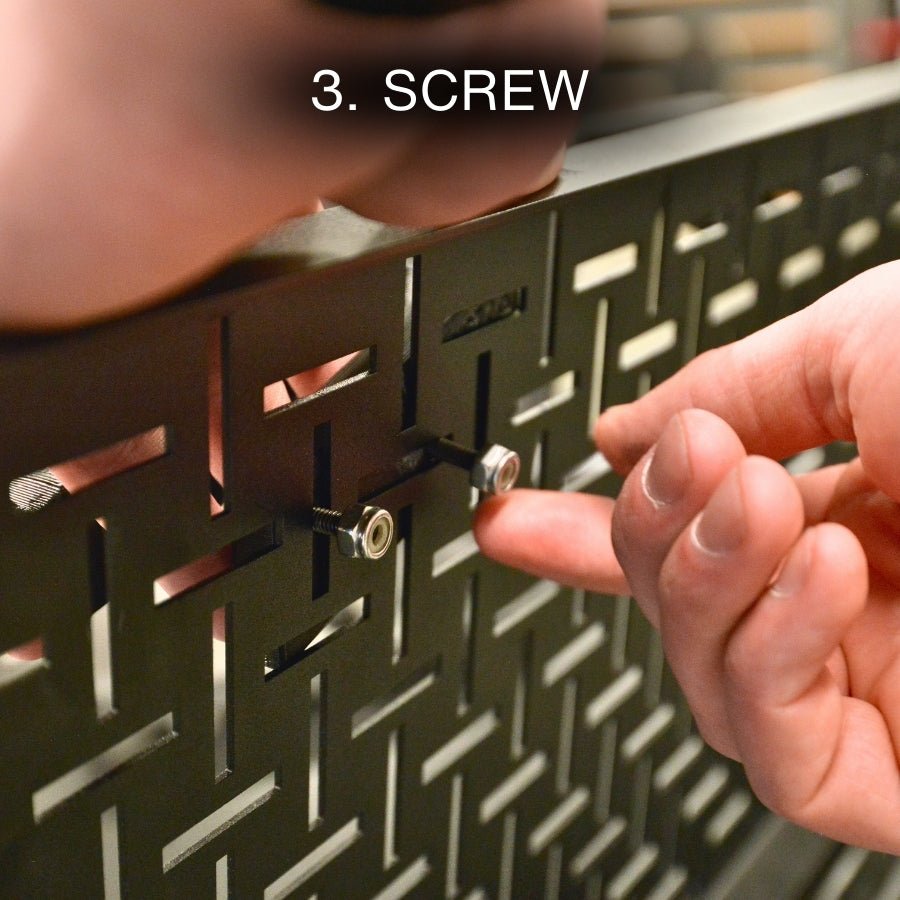

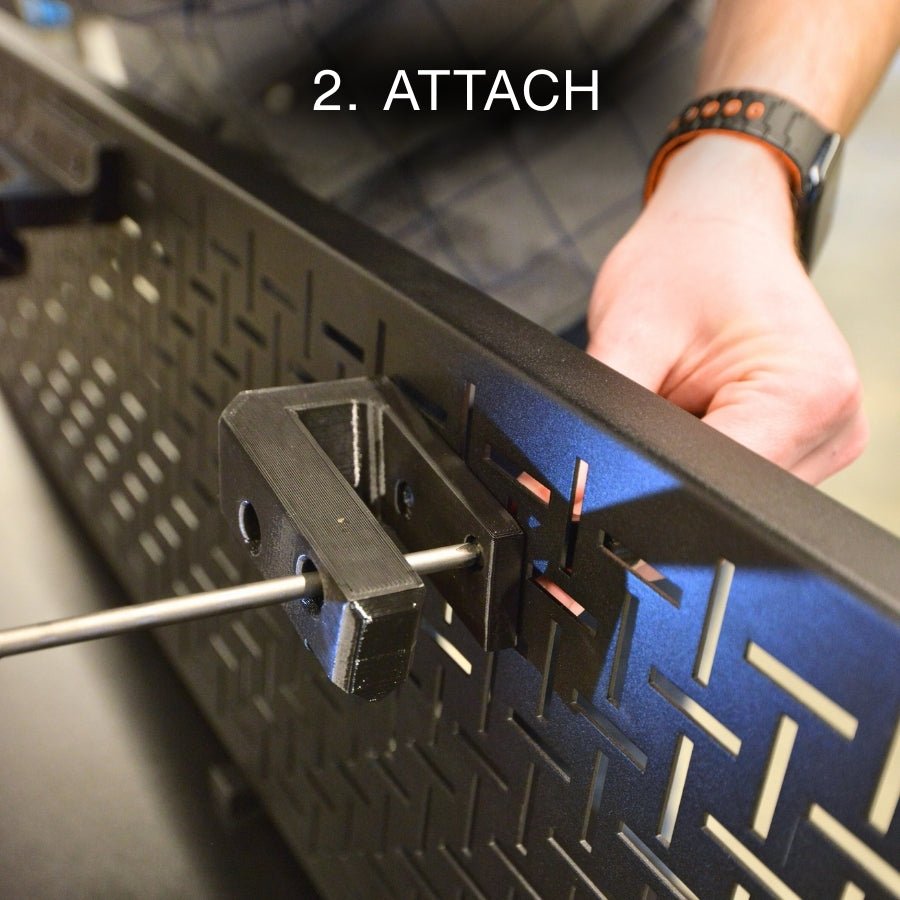

The SpartanGrid slot design accepts any hole pattern using standard #8 screws - no adapters, proprietary hooks, or special brackets needed.

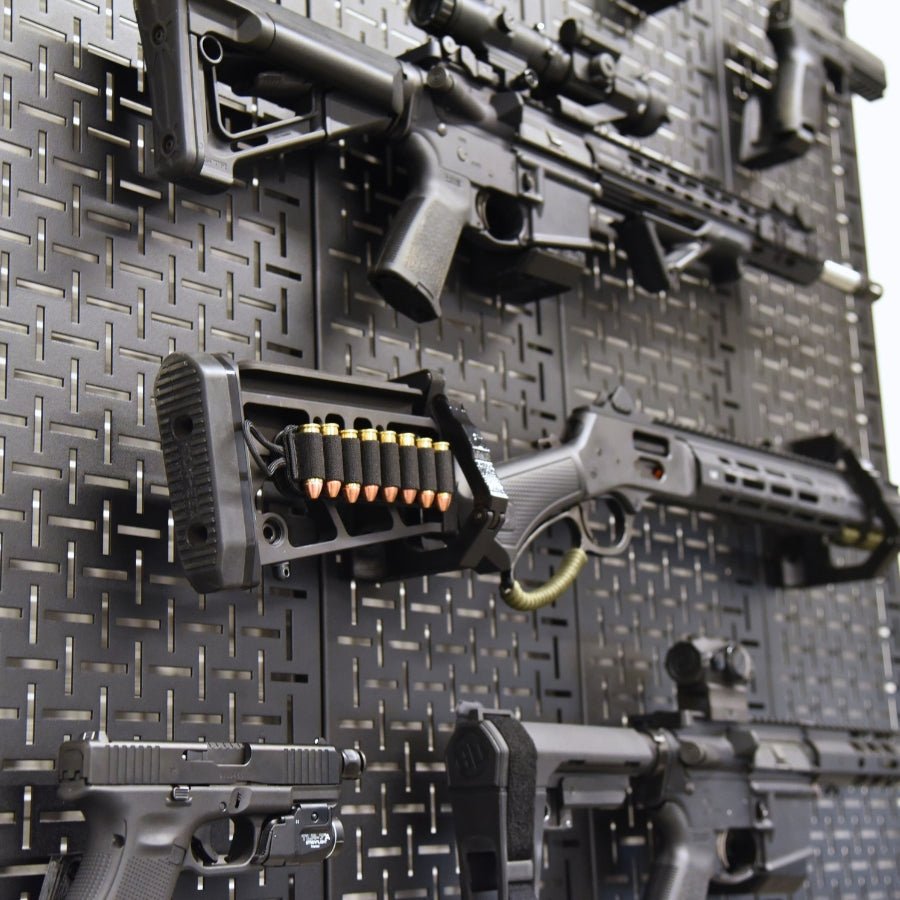

SpartanGrid is backward compatible with every Spartan Mounts product ever sold. Supports firearms, magazines, helmets, belts, PPE, tools, and custom accessories.
Built for Strength, Made in the USA
14-gauge powder coated steel panels and rails are precision cut with CO₂ lasers in Texas.
The SpartanGrid system is rated for 100 lb per 10x40 panel. This is not pegboard...it's a steel foundation built for serious gear.
Custom built to order for you, guaranteed against damage and defects.
A New Era for Spartan Mounts
For the first time, you don't have to choose between custom fit Spartan Mounts and the ability to reconfigure your wall.
The SpartanGrid system and Spartan Mounts products combine into one expandable, future-proof system designed around how real collections grow and change over time.
SpartanGrid System Highlights
- Modular steel wall panel system for gun walls and tactical walls
- Top and bottom rail mounting
- Removable 10" x 40" powder coated steel panels

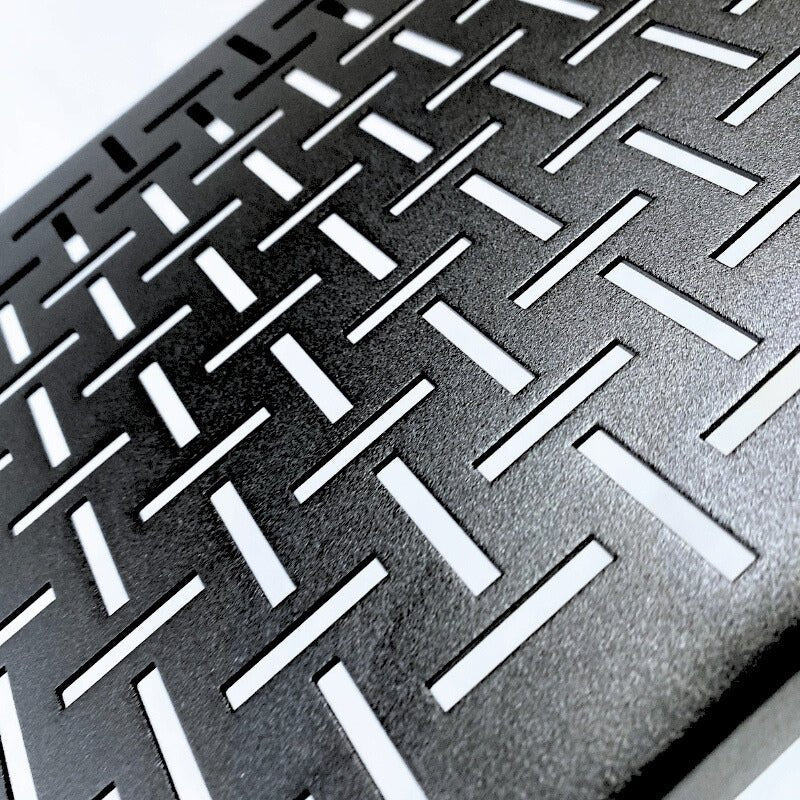

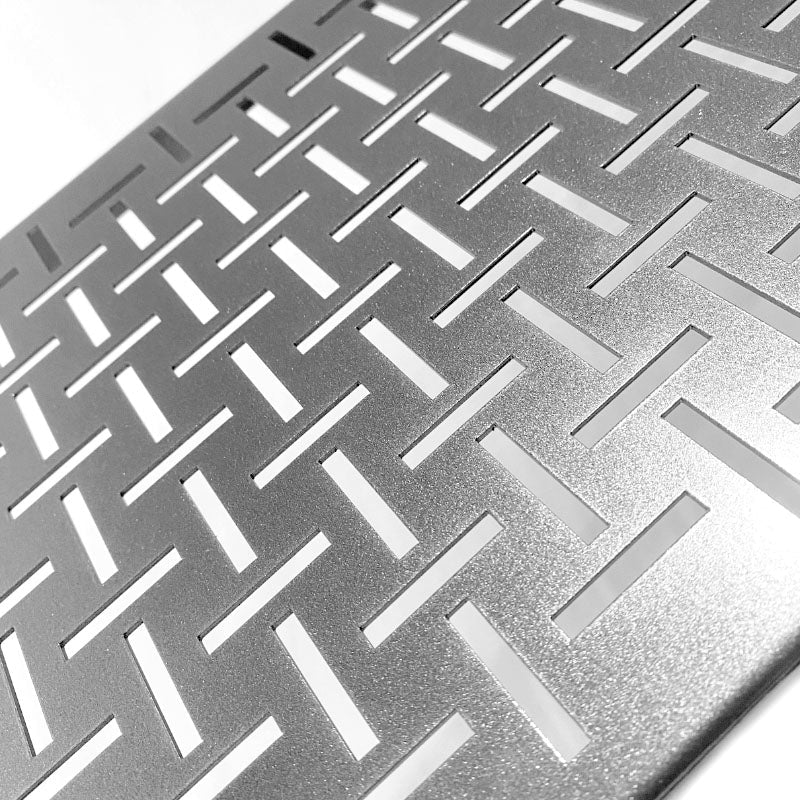

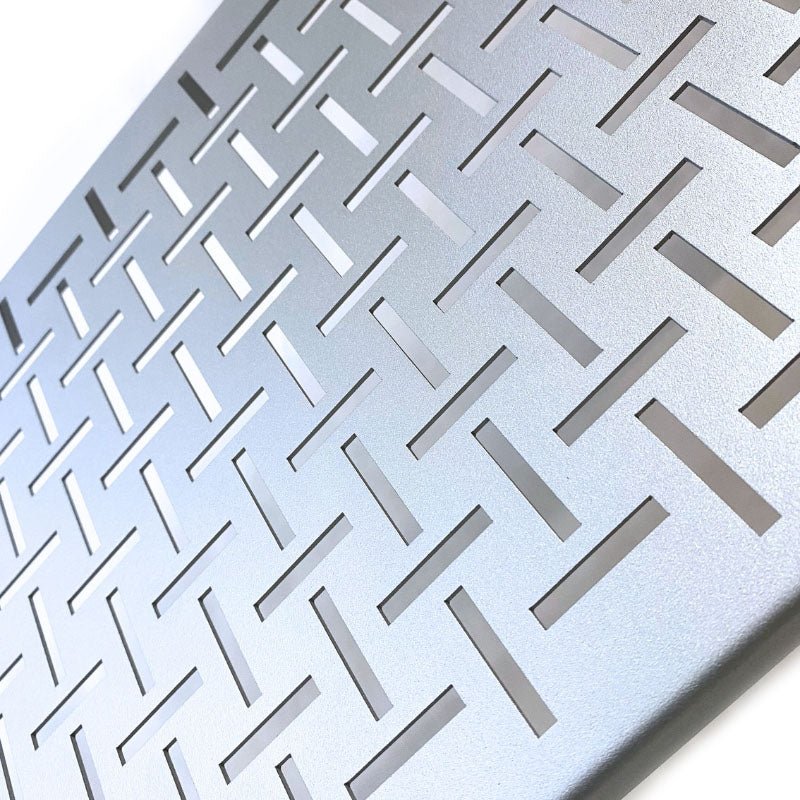

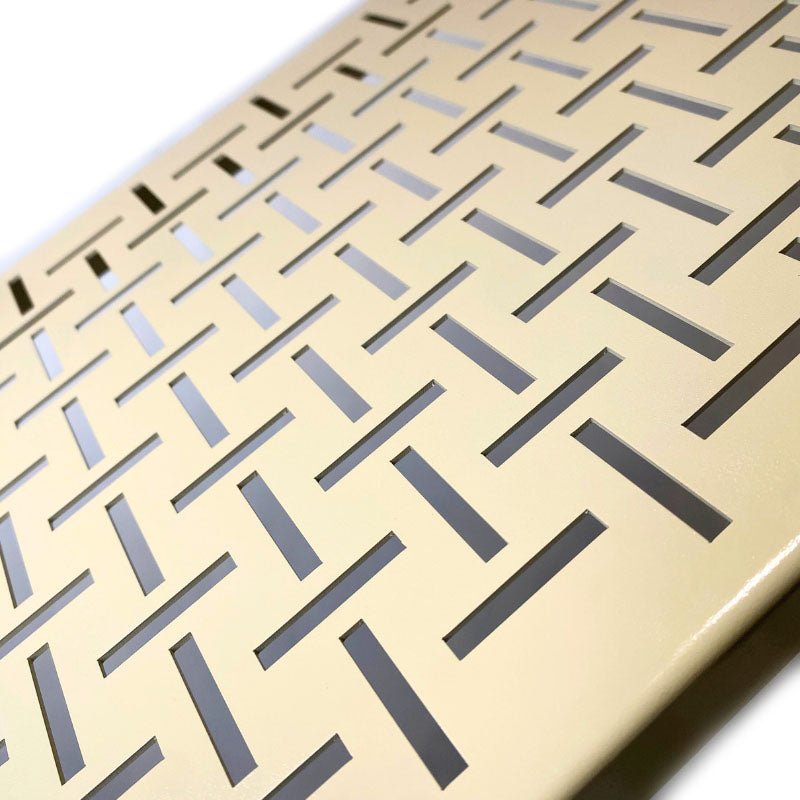

- SpartanGrid universal slot pattern
- Backward compatible with all Spartan Mounts; past, present, and future
- Accepts any accessory using standard #8 screws with no adapters or brackets
- Heavy-duty 14-gauge steel construction
- 10"x40" panels rated for 100 lb each
- 100% made in the USA with precision CO₂ laser cutting
SpartanGrid Return Policy: 30 days, unused, customer pays return shipping, 15% restocking fee, free replacement for damage or defect.
Also included with every order:
| Panel size | 10" wide x 40" tall |
|---|---|
| Material | 14-gauge powder coated steel |
| Panel weight | 6 lb 10 oz |
| Depth from wall | 1" |
| Rated load, per panel | 100 lb |
| Rated load, per rail run (top and bottom rail) | 21": 200 lb. 30"/31": 300 lb. 40"/41": 400 lb. |
| Mount attachment | Universal slot pattern, accepts any Spartan Mount using #8 screws and nuts |

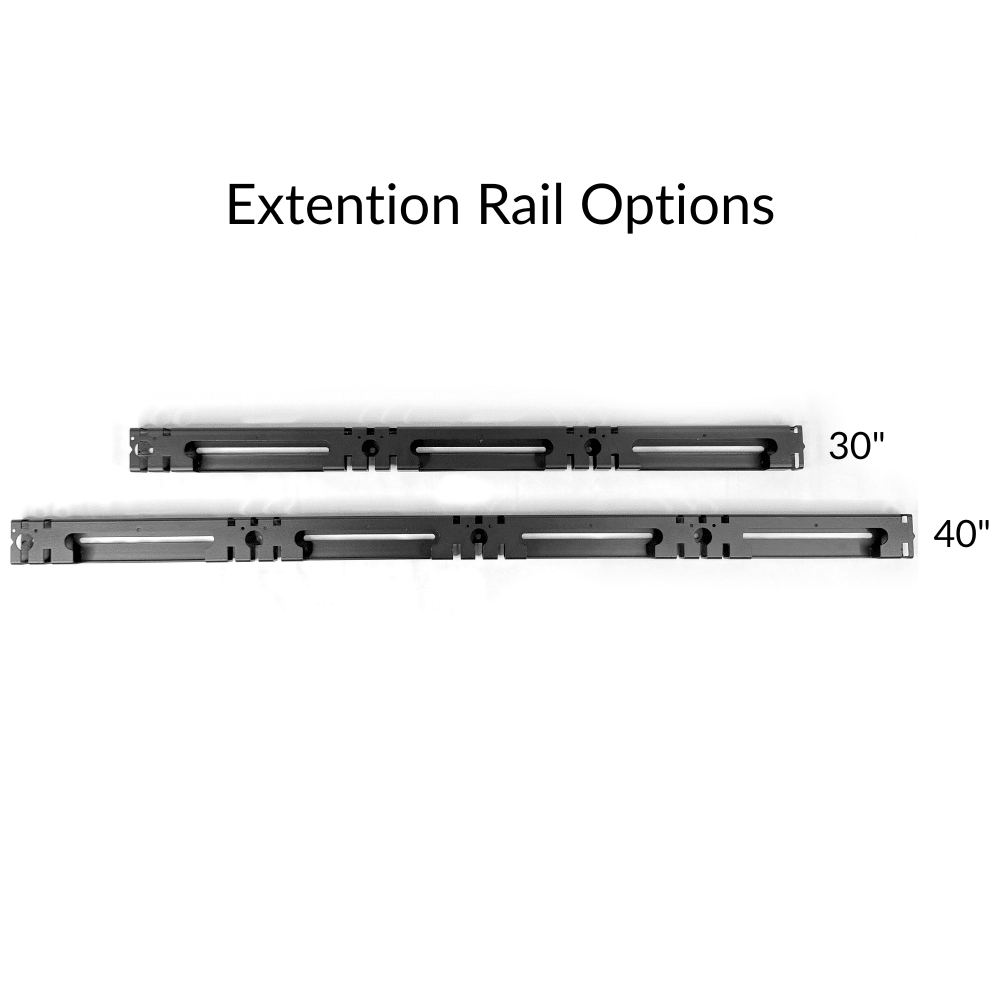

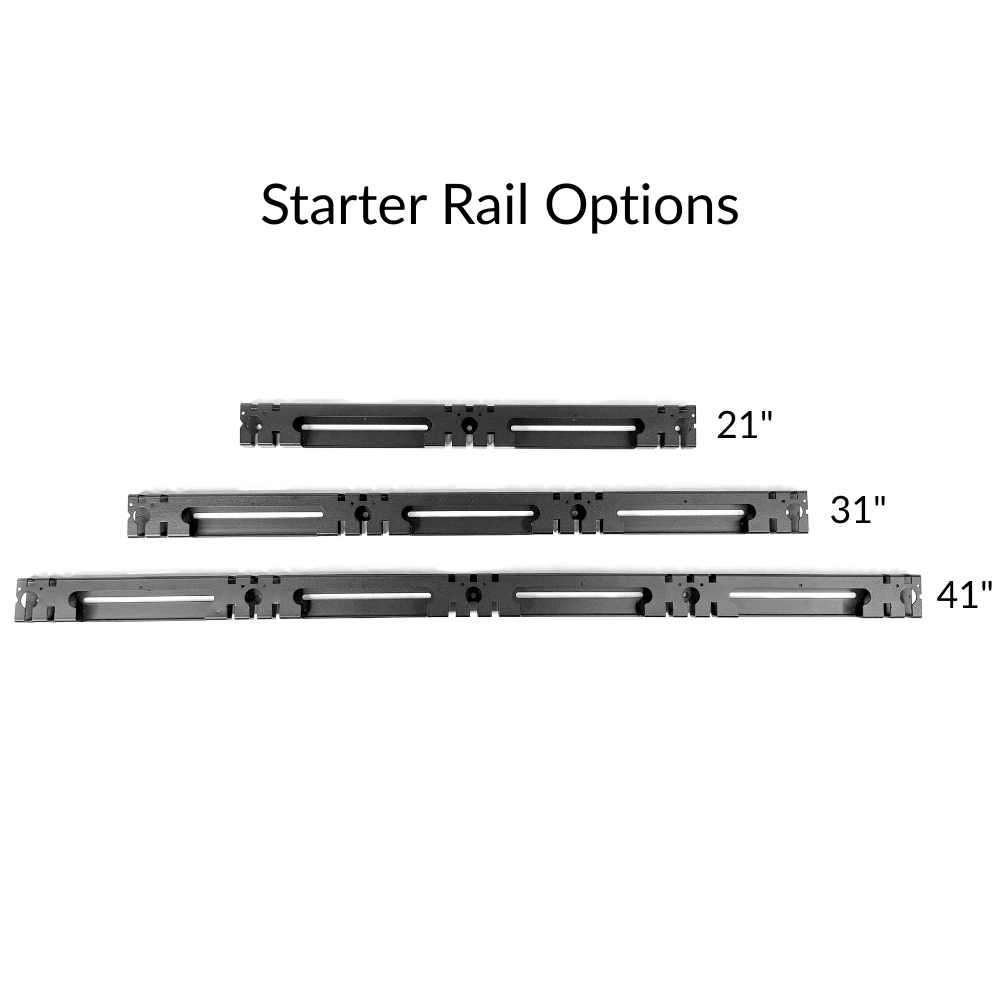

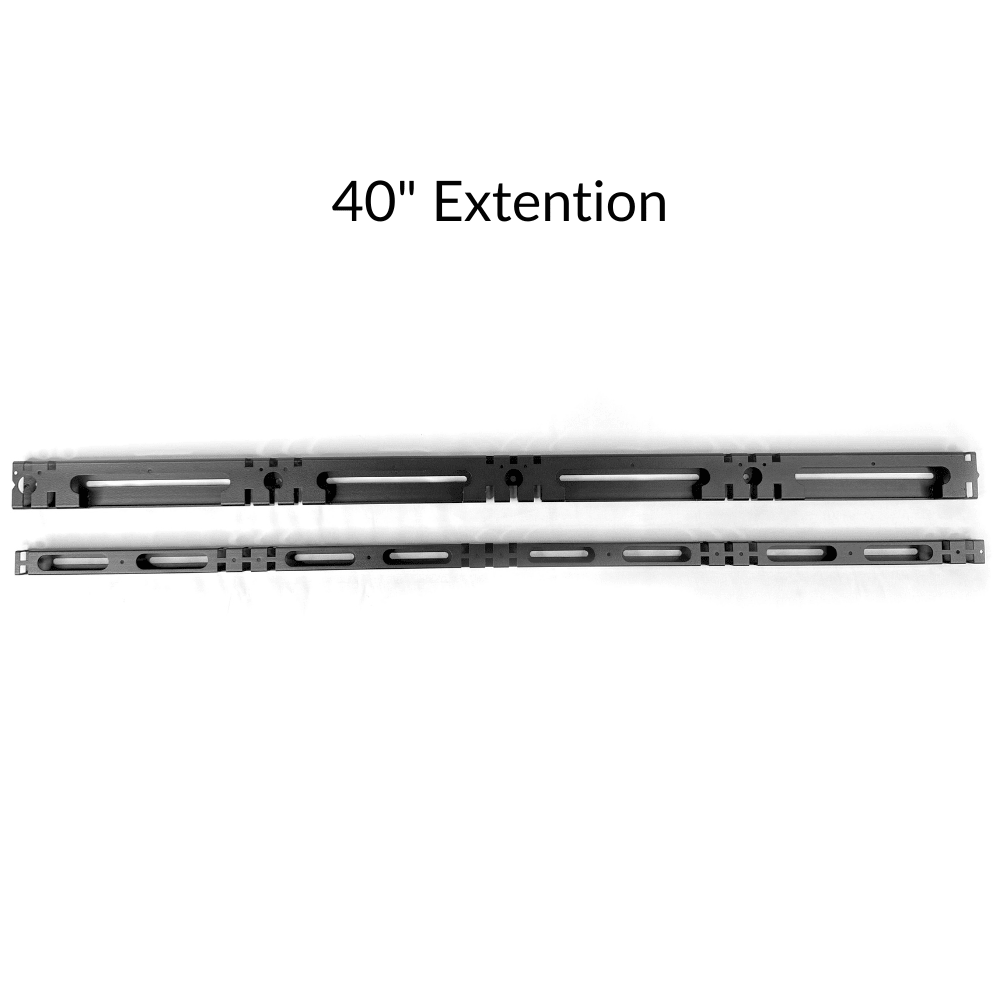

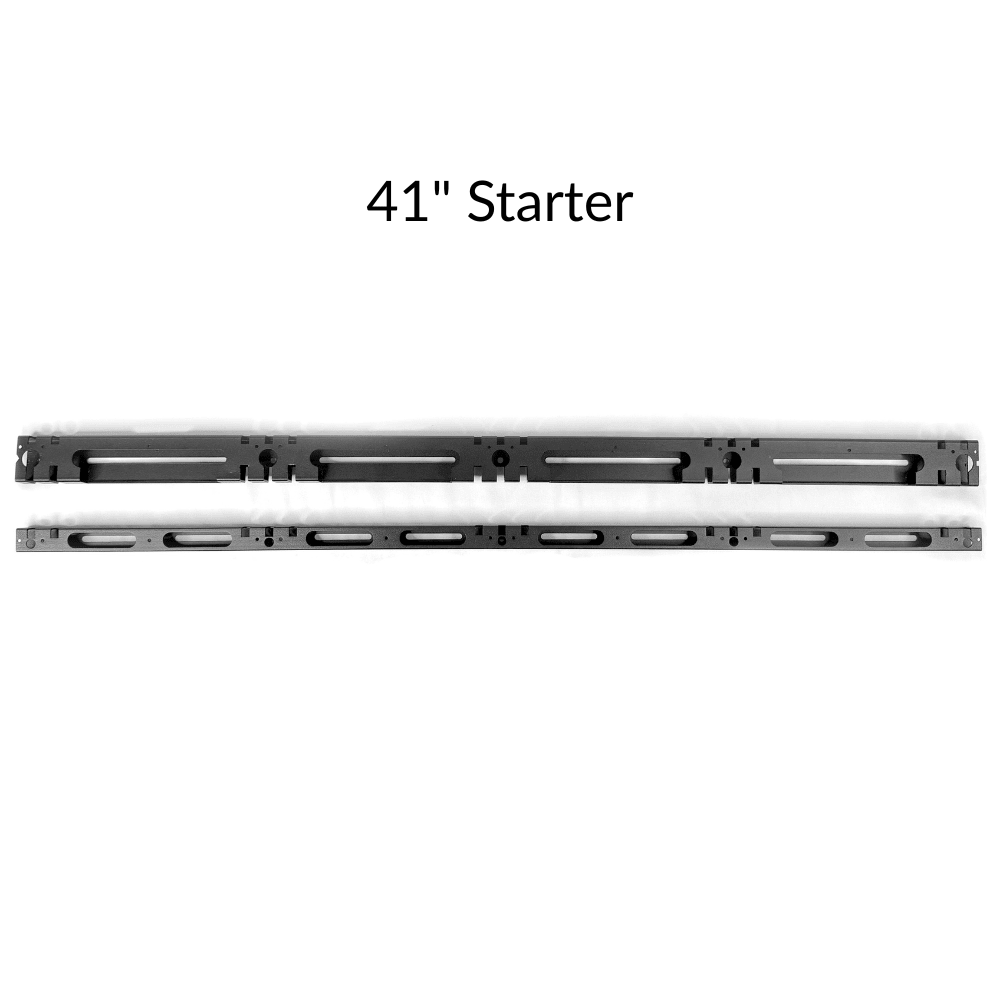

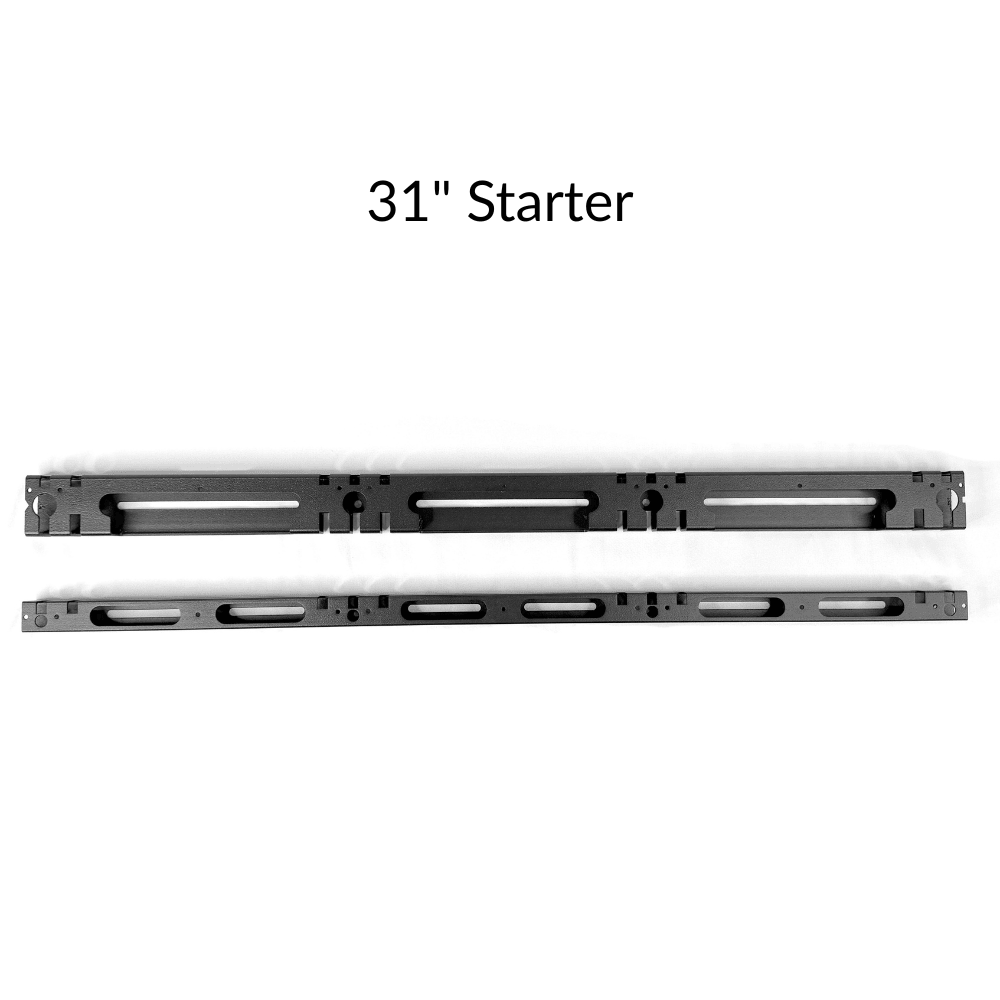

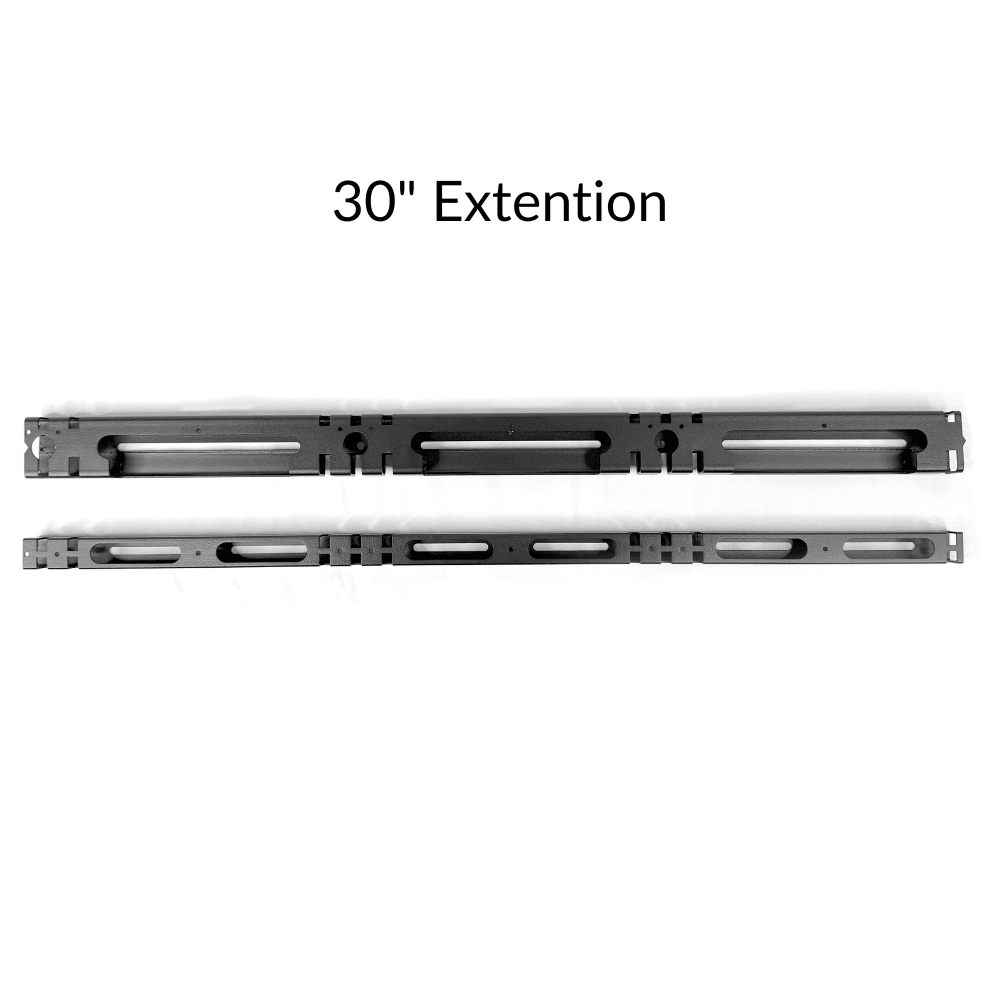

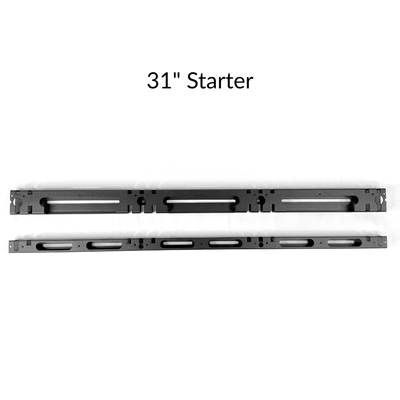

| Rails | One top and one bottom rail per run, slotted so screws can land on studs. Starter rails: 21", 31", 41". Extension rails: 30", 40". |
| Panels per rail run | 2 on 21", 3 on 30"/31", 4 on 40"/41" |
| Wall fasteners included | #10 x 1-1/2" stainless steel screws and drywall anchors, 2 per panel on each rail: 8 per 21" run, 12 per 30"/31" run, 16 per 40"/41" run |
| Wall type | Wood studs, drywall, or both |

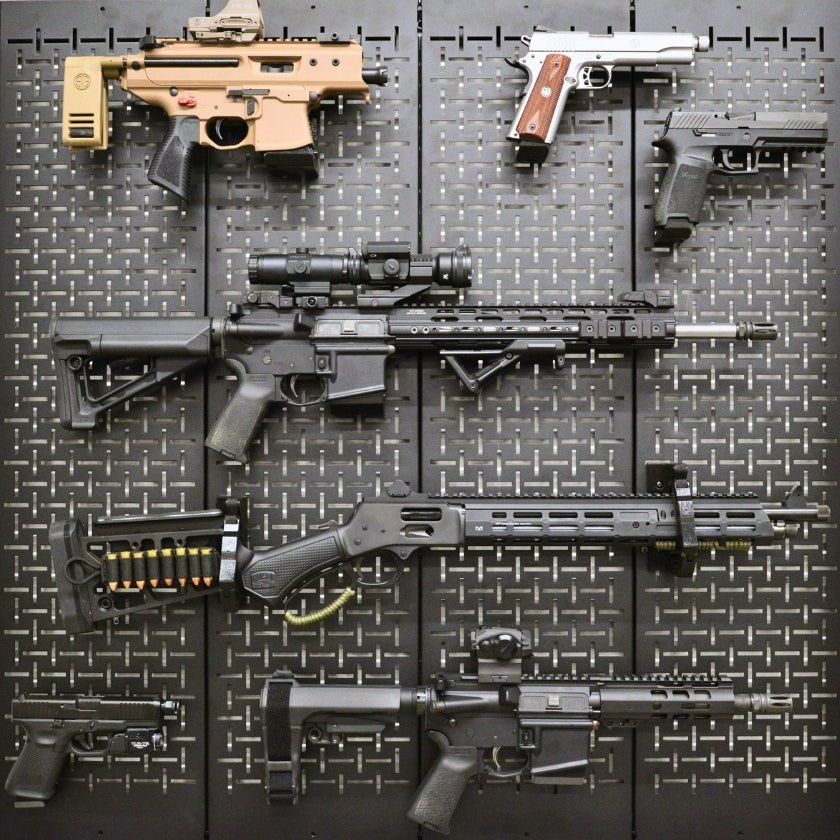

| Capacity | Up to 4 rifles per panel |
| Made in | USA |
Load rating
Each 10" x 40" panel is rated for 100 lb. The top and bottom rails are each mounted with 2 screws per panel, into studs where possible and into the included drywall anchors everywhere else. That makes a 21" rail run good for 200 lb, a 30" or 31" run for 300 lb, and a 40" or 41" run for 400 lb. In testing, a single AR-15 mount at the center of a panel held 180 lb with the rails on drywall anchors alone.
